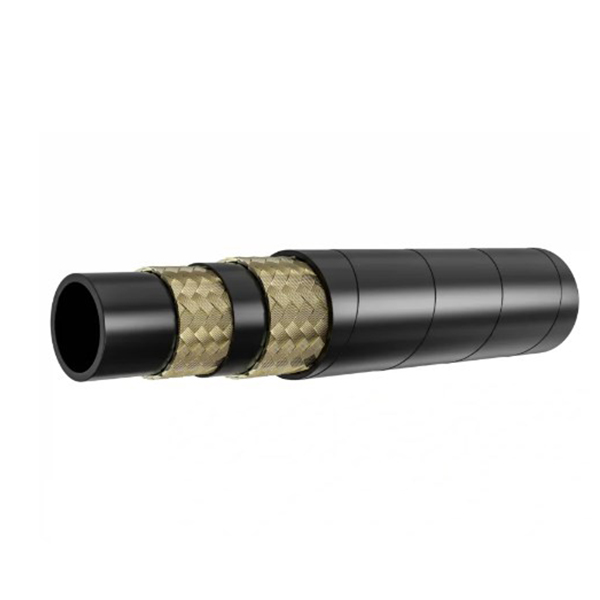

Inner Tube: one layer of oil-resistant synthetic NBR Reinforcement: double layers of high tensile steel wire reinforced Cover: single layer of oil and weather-resistant synthetic rubber Surface: wrapped surface or smooth surface Temperature Range: -40℃ – +100℃ Product Description EN 857 2SC is similar to EN 853 2SN steel wire reinforced hydraulic hose in the product structure. Compared to EN 853 2SN, EN 857 2SC has a smaller outer diameter, which makes the hydraulic systems or lines easier to install in compact and restricted spaces. It consists of a tube, reinforcement, and cover. The tube is made from oil-proof synthetic nitrile rubber, the reinforcement is two layers of braided steel wire, and the cover is a high-quality synthetic rubber with oil, weather, and abrasion resistance. The hose is made durable and robust, with a longer service life. Features And Benefits Superior flexibility and abrasion resistance Able to be compatible with a wide range of fluids Lightweight and compact for easier installation and longer service life Meets the EN 857 2SC specification Hydraulic Rubber Hose Applications Mainly suitable for delivering petroleum and water-based hydraulic fluids or oils in medium pressure conditions in an extensive working temperature from -40℃ to 100℃. Technical Data Sheet

DN	Hose ID		Hose O.D	Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius
	inch	mm	mm	Mpa	Psi	Mpa	Psi	mm
6	1/4"	6.4	14.2	45	6530	180	26100	75
8	5/16"	7.9	16.0	40	5800	160	23200	85
10	3/8"	9.5	18.3	37.5	5440	150	21750	90
13	1/2"	12.7	21.5	31	4500	124	17980	130
16	5/8"	15.9	24.7	30	4350	120	17400	170
19	3/4"	19.1	28.6	28.7	4160	115	16680	200
25	1"	25.4	36.6	22.5	3260	90	13050	250
32	1 1/4"	31.8	43.4	12.5	1820	50	7250	310
