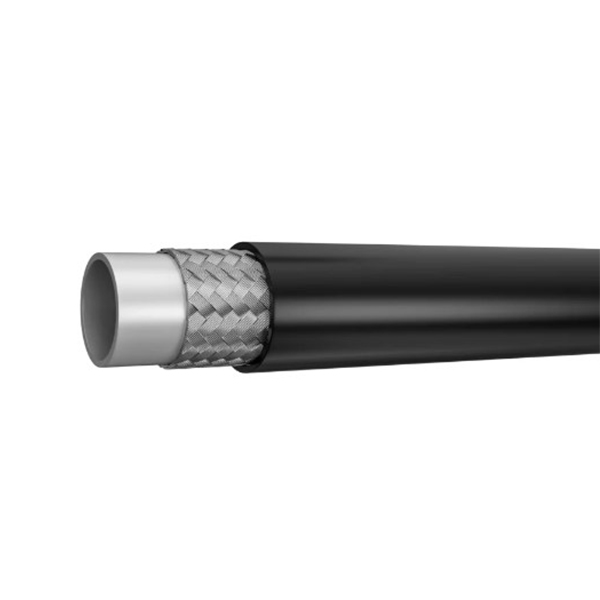

Inner Tube: seamless thermoplastic polyamide, oil resistant Reinforcement: one or two layers of braided synthetic fibre, lightweight and flexible Cover: black color, high quality and abrasion-resistant polyurethane Working Temperature Range: -40℃ – +100℃ Product Description SAE 100R7 thermoplastic hydraulic hose is suitable for delivery of petroleum-based or water-glycol-based hydraulic fluids with a temperature range from -40℃ to +100℃. It is a non-conductive thermoplastic elastomer. It comprises an inner tube, reinforcement, and outer cover. The tube is made from oil-resistant thermoplastic, enabling the hose to effectively convey petroleum and water-glycol-based hydraulic fluids. The reinforcement is composed of high-quality synthetic fiber, which provides solid support for the hose to work in medium-pressure conditions. The cover is made up of abrasion-resistant thermoplastic, which can withstand extreme weather and hydraulic fluids. The thermoplastic hydraulic hose is classified into three types: fiber-braid resin hose, steel wire-braid resin hose, and fiber or steel wire-braid twin hose. Product Applications Suitable for medium-pressure hydraulic lines and pneumatic systems. Perforated hoses are recommended in pneumatic systems. Exceeds the requirements of SAE 100R7. Technical Data Sheet

DN	HOSE ID		HOSE O.D.	Max.Working Pressure		Min.Burst Pressure		Min Bend Radius
	Inch	Mm	Mm	Mpa	Psi	Mpa	Psi	mm
3	1/8"	3.3	8.5	21	3050	84	12180	25
5	3/16"	4.8	10.8	21	3050	84	12180	90
6	1/4"	6.4	13.0	19.2	2780	76.8	11140	100
8	5/16"	7.9	15.1	17.5	2540	70	10150	115
10	3/8"	9.5	17.0	15.7	2280	62.8	9100	125
13	1/2"	12.7	20.7	14	2030	56	8120	180
16	5/8"	15.9	24.6	10.5	1520	42	6090	205
19	3/4"	19	26.0	8.7	1260	34.8	5050	240
25	1"	25	32	7	1000	27.6	4000	300
32	1 1/4"	32	40	5	800	40	3200	310
38	1 1/2"	38	45	4	600	16	2400	320
51	2"	50	59	3	500	12	2000	360
